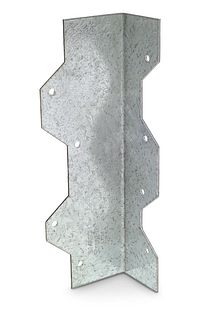

Simpson Strong L L-Shaped Angle

• $5⁹⁹ $5.99
  Unit price/ per

---

Select 9" L

Quantity

+ -

Add to Cart

---

The L angle is a general utility-reinforcing connector with multiple uses. The durable design and fastening options of these load-rated skewable angles make them an ideal option compared to field-fabricated clip angles. The L angle has well-defined fastener locations, and testing ensures that the tabulated load values account for connection eccentricities.

Key Features

• Staggered nail pattern reduces the possibility for splitting
• Available in multiple sizes to ensure proper selection for the specific use
• Load rated for wood and cold-formed steel applications

Material

• 54 mil (16 ga.)

Finish

• Galvanized (G90)

Installation

• Use all specified fasteners; see General Notes
• Nail the L angle’s wider leg into the joist to ensure table loads and allow correct nailing

Model No.	Thickness (mil)	Ga.	L (in.)	Coating/Material	Packaging Qty.
L30	54	16	3	Zinc Galvanized, G90	1
L50	54	16	5	Zinc Galvanized, G90	1
L50Z	54	16	5	ZMAX®	1
L70	54	16	7	Zinc Galvanized, G90	1
L70Z	54	16	7	ZMAX®	1
L90	54	16	9	Zinc Galvanized, G90	1
L90Z	54	16	9	ZMAX®	1
