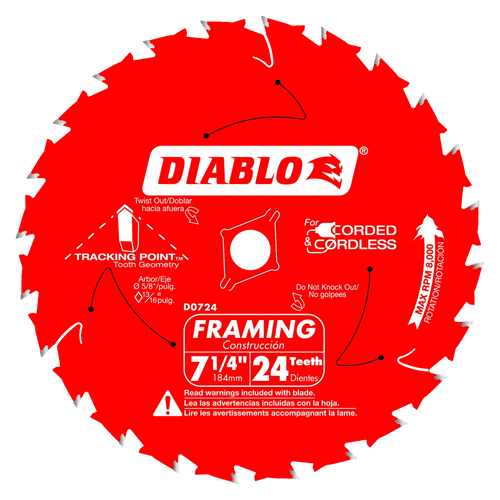

Freud America Diablo Framing Saw Blade

Freud America Diablo

Options

Cutting Wood Framing

Tracking Point™ tooth design provides straight cuts & control carbide wear for up to 5x longer cutting life vs other blades
Tracking Point™ tooth design also delivers extreme cutting efficiency in corded and cordless saws (30% more cuts per battery charge in cordless saws versus other blades)
Newly Enhanced Anti-Vibration design provides the ideal combination of stability and rigidity

PRODUCT OVERVIEW

Next generation 7-1/4” 24T Framing Blade with Tracking Point™ Tooth design delivers maximum life and durability with effortless cutting performance. Up Your Cutting Game with this one-of-a-kind Tracking Point™ tooth grind for unmatched cutting performance and efficiency. This is the only 7-1/4” blade on the market to include Tracking Point™ Tooth design; making it is ideal for framers, roofers, remodelers, concrete formers or anyone wanting ultimate cutting performance in pressure treated wood, 2x lumber, plywood, hardwoods & softwoods. With 5 times the cutting life performance compared to other framing blades, you can save up to $14.88.

Tracking Point™ tooth design provides straight cuts & control carbide wear for up to 5x longer cutting life vs other blades
Tracking Point™ tooth design also delivers extreme cutting efficiency in corded and cordless saws (30% more cuts per battery charge in cordless saws versus other blades)
Newly Enhanced Anti-Vibration design provides the ideal combination of stability and rigidity
Perma-Shield Non-stick coating resists heat, gumming and corrosion
Laser-Cut Thin kerf for less resistance and greater cutting efficiency

Ideal For: General construction applications, framers, roofers, remodelers, and concrete formers

Suggested Projects: Framing, Remodeling/Demolition, Siding/Decking, Masonry / Concrete Forming, Landscaping

TECHNICAL SPECIFICATIONS

ARBOR 5/8"
DIAMETER 7-1/4"
HOOK ANGLE 15°
KERF .059"
PLATE .040"
TEETH 24 ATB
MAX RPM 8000

CUTS
